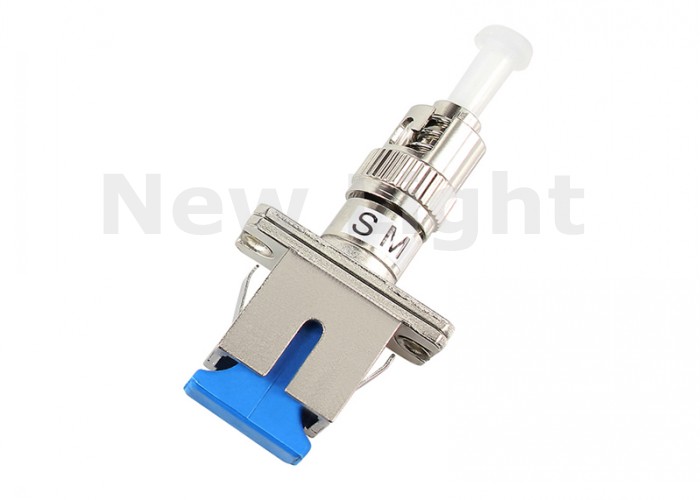

ST-SC adapter Connector ST to SC flange adapter ST-SC Square metal cover for Telecom network
Quick details:
Insertion loss: less than 0.20db
Repeatability: less than 0.10
Interchangeability: less than 0.20
Sleeve material: imported ceramics
Work temperature: -40 ~ +80 (c)
Storage temperature: -40 ~ +85 (c)
Reliability test condition:
| Continuous collision (4000) into the change |
less than or equal to 0.2dB = 45dB reflection |
| Drop test |
insert change = 0.2dB = 45dB reflection |
| Bending test |
insert change = 0.2dB = 45dB reflection |
| Twisting test |
insert change = 0.2dB = 45dB reflection |
| Durability test |
insert change = 0.2dB = 45dB reflection |
| Tensile Test |
insert changes less than 0.2dB reflection over 45dB |
| Fitting resistance |
200-400gf |
| Vibration test |
insert change = 0.2dB = 45dB reflection |
| Salt spray test |
insert change = 0.2dB = 45dB reflection |
| Thermal shock test |
insert change = 0.2dB = 45dB reflection |
| Operating temperature |
-20 ~ +70 degree |
| Storage temperature |
-40 ~ +70 degree |
Feature:
Low insertion loss value
Good interchangeability
Good reusability
Tolerate high temperatures
Tolerate Acid and alkali
Stable performance
Excellent mechanical capability
Application:
*Telecom network
*CATV
*Optical test equipment
*Local area networks
*Wide area networks
*Data processing Networks
